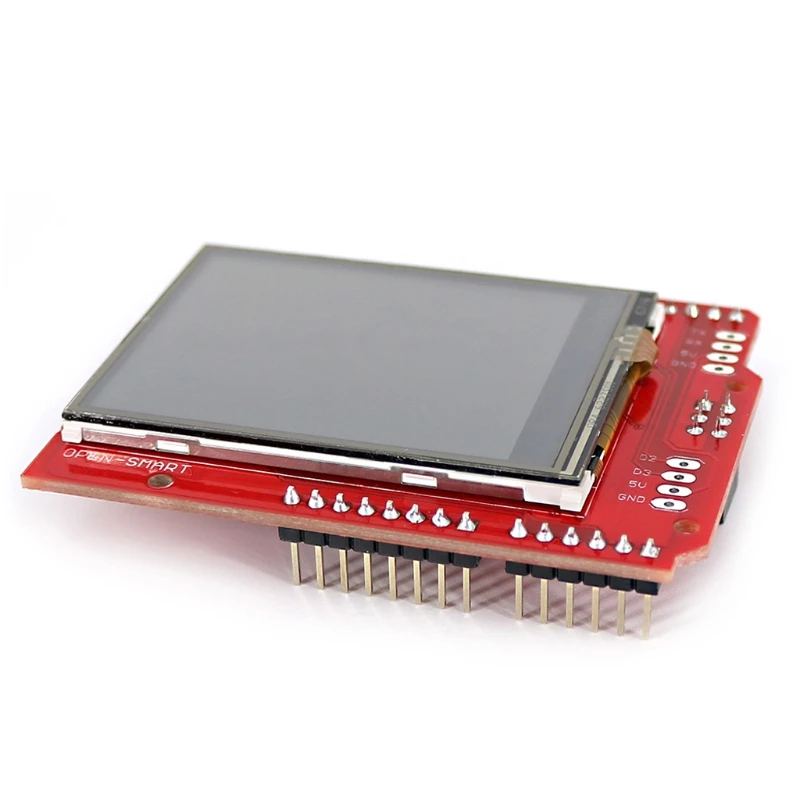

2.2″ TFT LCD Touch Screen Expansion Shield w/ Touch Pen For Arduino

80 % of buyers enjoyed this product!
In stock
Price: US $6.61 Sale Price: US $5.29
45 days Money back
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery
On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Descriptions: This is a 2.2 inch TFT touch screen expansion board using standard Arduino Shield interface and it has good compatibility. It integrates a 2.2-inch touch screen, I2C temperature sensor, TF card holder, level conversion circuit, and the secondary development is easy With GPRS module, you can design your Arduino phone With NFC reader module, you can create access control systems with the photos show. With voltage and current sensor, you can make oscilloscope Can use it directly to display characters, graphics and BMP format images. And touch controlling is available Compatibility: As the SD card is connected to SPI pins of ICSP interface, compatible with Arduino UNO R3 / Arduino Mega2560 / Arduino Leonardo Use the A0 ~ A3 pins, D4 ~ D13 pins. And I2C interface, D0 / D1 / D2 / D3 is available, please refer to the product schematics for the details It leads out the I2C interface of Arduino board, it can connect to the DS1307 RTC module, BMP280 barometric pressure sensor module, AP3216 digital ambient light proximity sensor module It leads out the RX / TX interface, it can connect to serial ESP-07 / ESP-12 Wi-Fi module, serial MP3 module, serial GPRS module Onboard Micro SD slot, support Micro SD / TF Card Onboard LM75 temperature sensor: default I2C address is 0X48, scale is -55 ~ 125’C Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor Specifications: Touch screen type: resistive touch screen Touch Pen: length is 9cm Resolution: 176×220 Display size: 2.2 inch Operating voltage: 5V Logic level: 5V / 3.3V On-board 3.3V / 300mA regulator circuit Operating current: the maximum is 150mA Size: 7×5.4cm/2.76×2.13inch Quantity: 1 Set Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Download ip:http://www.winddeal.net/image2/tools/1A40588.rar Package includes: 1 Pc x Expansion Board 1 Pc x Touch Pen
